Dump trucks are used on the construction site for a long time, which will shorten the service life of the truck, and it is also easy to cause large and small accidents. So, how can we minimize this loss and avoid accidents? This article will share with you the knowledge of the use and maintenance of construction site dump trucks.
Downhill
In the case of roads with many downhill roads, water spray must be used according to the situation. If no water spray is installed, it is very necessary for the exhaust brake to work properly. In addition, the engine speed must not exceed the rated speed when downhill, and the engine speed is controlled within two thousand rpm! For the same slope, the downhill gear is one gear higher than when uphill. In short, the downhill speed should be slow, so that you can stop the car with one foot brake at any time, so that it is the safest.

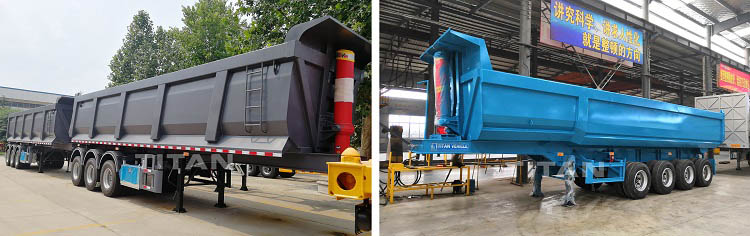

TITAN U Type semi tipper trailer
Unload cargo
When unloading, try to stop the car as much as possible. Wet ground must always pay attention to whether the road surface is subsidence, and whether the rear wheels are inclined due to the weight of the car lifting and moving back. If there is, it is necessary to choose topping according to the inclination and the remaining amount of the goods. If you incline too much, you have to put it to the end to get started. Don't start halfway, it's very dangerous.
In addition, if the unloading is a big stone, then there is a trick: one must be flat; two must be loud, if there is a sound, you can continue to top; third, you must observe whether the back door is against.
Front-top dump trailer, telescopic cylinders are installed between the cab and the cabin, and unloading is carried out by lifting the front end of the cabin. Compared with the belly-top dump truck, the front-top dump truck has many advantages. The same specification of the oil cylinder can lift larger tonnage cargo, and it is widely used in medium-heavy tonnage dump trucks.
Principle of hydraulic system
The hydraulic system of the front lift dump truck is mainly composed of a telescopic oil cylinder, a pneumatically controlled directional valve, an oil tank and accessories. By operating the air control pilot valve in the cab, the telescopic cylinder can be lowered, stopped, and lifted. The telescopic oil cylinder is a multi-stage plunger cylinder, and the air control reversing valve is dropped by gravity after being switched. The angle limit valve can ensure that the cargo compartment is unloaded at the maximum lifting angle, and prevents the cargo compartment from being too large and causing a rollover.

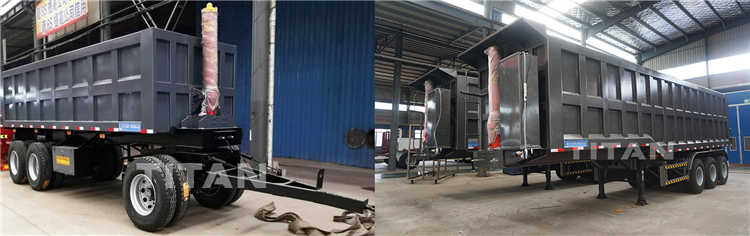

TITAN drawbar tipping trailer VS dumping trailer for sale
Common Problems
(1) The carriage cannot be lowered.
The carriage cannot be lowered, which may be the failure of the air control pilot valve, the failure of the air control directional valve, and the deformation of the cylinder. Should first check whether there is a main air source, operate the air control pilot valve to observe whether there is gas out. Secondly, check whether the air cavity of the air control reversing valve is connected to the air, and whether the valve core is stuck. Finally, check whether the telescopic cylinder barrel is deformed, and whether the stabilizer or the carriage is deformed.
(2) The cylinder is not fully lifted
If the cylinder is not fully lifted, there may be insufficient hydraulic oil, malfunction of the angle limit valve, gear pump and relief valve. We should first check whether the oil level of the fuel tank is sufficient, and whether the angle limit valve is installed in the correct position. Then check whether the gear pump has serious internal leakage and the pressure setting of the relief valve is correct.
(3) The dump trailer body cannot be lifted. The trailer body cannot be lifted because of overload, power take-off, etc. Should first check whether the tip trailer is overloaded and unloaded on the slope. Second, check whether the pressure of the air source is sufficient, whether the trachea is bent, and whether the power take-off is combined. Finally, to check the hydraulic system problems, you can disassemble the oil pipe, observe whether the gear pump is out of oil, and check whether the gas control directional valve and the overflow valve are stuck.

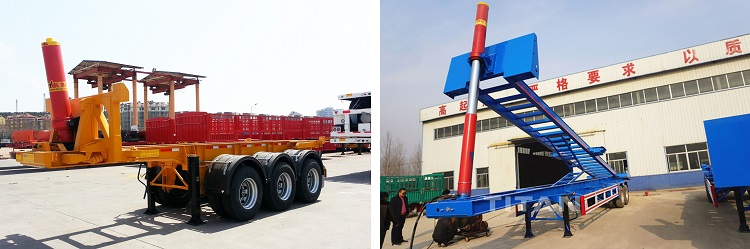

Container chassis dump trailer
Air filter: There is a lot of dust on the construction site, and the air filter element is very easy to be dirty. If the filter element is not maintained and replaced in time, it will cause insufficient air intake, resulting in black smoke from the engine, high fuel consumption, and fuel leakage from the supercharger. What's more, if the filter element is damaged, the dust is directly sucked into the cylinder, which will cause early engine wear and burn engine oil!
Motor oil: For semi trailer tipper working on the construction site, the oil must be changed every 5,000 kilometers. If the odometer is inaccurate, the engine oil can be changed according to the accumulated working hours, every 500 hours. There is also a soil method, that is, pay attention to the oil change time of the excavator on the construction site.

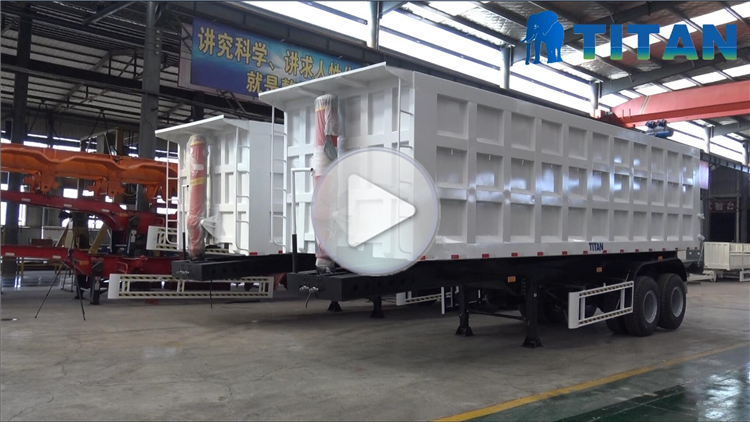

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
