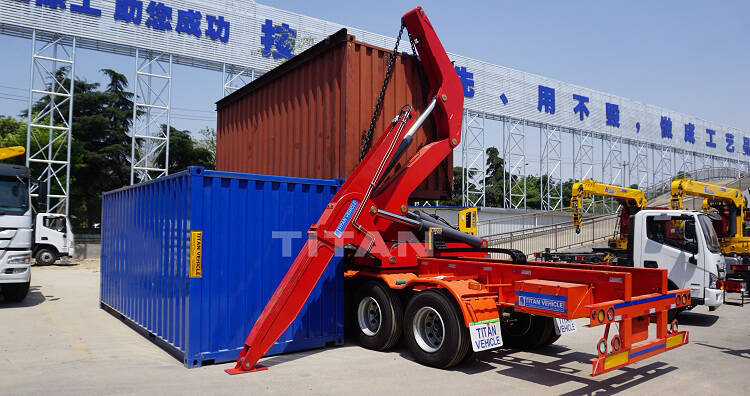

TITAN Sidelifter Trailer includes 20ft side loader truck, 20ft and 40ft self loading container trailer. The side loader trailer is a container-specific loading and unloading vehicle, which is used in container terminals and transfer yards. The role of side loader container trailer is to realize container handling, such as loading and unloading of container flatbed trailer.
The side lifter trailer technology can effectively solve the problem of no loading and unloading machinery. The military of many countries has been equipped with container loading trailer. As a convenient and efficient container loading and unloading vehicle, the container lift trailer can load containers by itself, and it can also load and unload containers for other container carriers (such as flatbed trailer and skeletal trailer). As you can see, box loader for sale is very suitable for areas where there is no container loading and unloading equipment.
According to the type of transportation container, it is divided into 20ft and 40ft container side lifter.

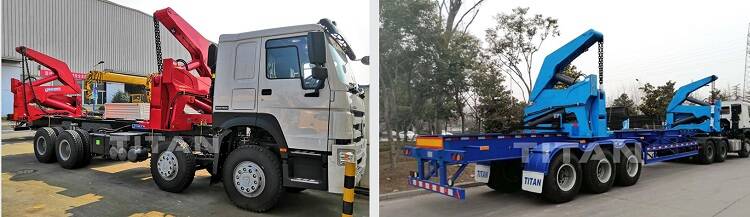

According to different transport chassis, it can be divided into self loader truck and side loader trailer.
According to the different tonnage of lifting, it can be divided into 16 tons, 25 tons, 37 tons, 45 tons of Hammar side lifter, of which 37 tons and 45 tons are the best sales.

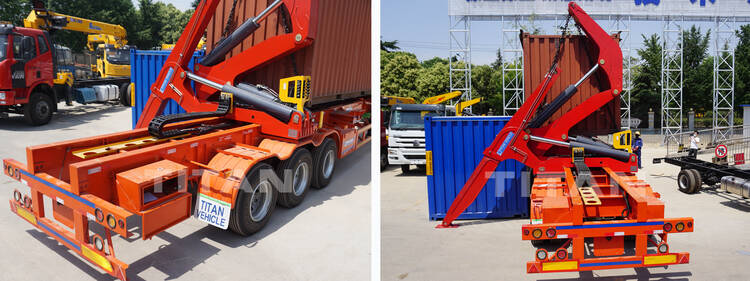

1. TITAN side lifter can slide back and forth to adapt to the loading and unloading and transportation of standard 20-foot and 40-foot containers;
2. TITAN self loader truck is equipped with imported centralized lubrication system, and the electric control is easy to operate;
3. Retain manual emergency operation mode and safety insurance;

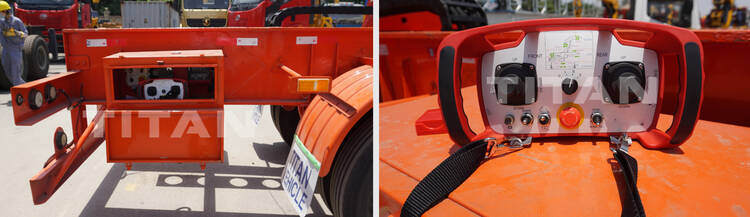

4. The wireless remote control system is adopted for lifting operation, equipped with imported remote control, which is easy to operate and reliable in micro movement;
5. No-load and heavy-load double-speed operation;
6. TITAN side loader trailer is equipped with imported electromagnetic proportional valves for precise control;
7. Hoisting operation adopts intelligent safety protection system to intelligently lock dangerous operations.
8. The crane adopts a dual-pump dual-circuit hydraulic system, which is not affected by unbalanced load and operates reliably;
9. The vehicle safety control system is equipped with a one-key flameout switch;
The key factor of the sidelifter trailer is that the lifting device can safely lift and support a maximum load of 45 tons. The lifting device has excellent wear resistance and resistance, and provides maximum safety without affecting the strength. The Titan side-lift truck is equipped with a 16mm ICE chain as standard. Although these chains are relatively small and light, they provide a higher lifting capacity, and their working load limit is 60% higher than the 80-level chain.
TITAN container side lifter chassis is an important construction. It manages the weight of the loaded cargo/container. More than that, it supports the cranes.
The professionally designed independent power pack system with TITAN engine allows the side lift to operate independently. This means that the side-lift forklift can be operated on any truck without any specific hydraulic accessories, and provides greater flexibility for operators with truck fleets. The independent Kubota engine greatly reduces operating costs. When you compare it with other engines, it is more efficient and runs at a lower cost. The fuel consumption per hour is only 9.5 liters, and the alternative fuel consumption is 11.43 liters per hour, which makes its operating cost lower and better for the environment. Titan has a full range of engine parts, including filters and seals for maintenance.

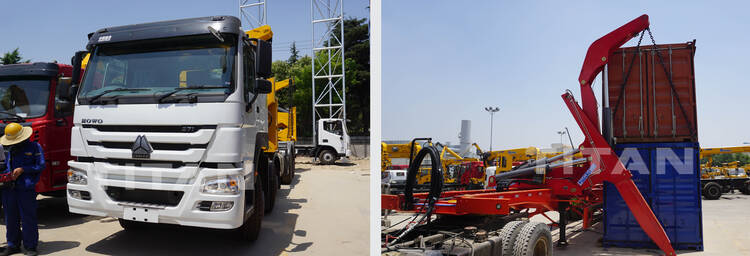

This is used to pull the trailer. In some scenarios, it supplies power via the PTO. This accessory also supplies compressed air for the brakes in the wheels of the side lifter. Usually, the side lifter cannot be operated without connecting it to the tractor.
Advanced PVG proportional control valve is very suitable for TITAN sidelifters, and can accurately meet our requirements. Using "proportional control", containers can be loaded onto the forklift in less than five minutes. Each system has built-in Titan design and proportional control, which can always smoothly control the container load, thus ensuring maximum safety and product reliability. The container can be moved gently and moved at different speeds, regardless of the weight, the container can be placed accurately, quickly, easily and safely.
The heavy lifting hydraulic cylinders that Titan trailers complete every day are optimized designs specifically designed for TITAN. The design of the cylinder conforms to international standards and uses seals and components provided by internationally recognized suppliers. This ensures that original parts are always available worldwide.
TITAN Sidelifter equipment was designed to take on a maximum weight of 45 tonnes. However, continued innovation and development have seen recent designs take up to 47 tonnes. Most important to note is the telescopic chassis of the side lifter, This type of chassis allows the unit to contract and expand to make the desired room for accommodating a 20ft, a 40ft or a 45ft container.
TITAN has used this type of steel for many years. Hardened and tempered steel is much stronger than ordinary low carbon steel. This means that the amount of material in the crane can be reduced, thereby reducing the weight while still performing the same lifting operation.
Through this videos, you can learn about different types of sidelifter trailers, including 20ft self loader truck, 20ft sidelifter and 40ft container side loader trailer.
As well as the process, testing, packaging and customer feedback, etc.
