A livestock trailer also known as an animal transport trailer is used for the transportation of cattle, horses and pigs. The construction of livestock trailer bodies is usually of sidewalls that have tubular truss-type support structures closed in through the use of spaced-parallel and horizontal slats that are fastened to one another.

Some of these types of trailers normally come with a removable floor located somewhat at the middle section hence offering separate lower and upper decks for loading the animals.

During the loading of the upper deck, considerable weight is well-concentrated and balanced at the top. To make this possible, the trailer is usually of sturdy and rigid construction in order to prevent swaying over under such loading conditions.

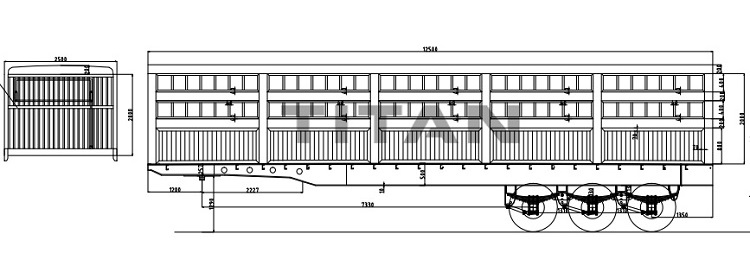

TITAN 3 axle Fence trailer specification



Different types of animal trailers

Livestock cargo trailers come in different types. Each of the different designs is made to serve a specific function.

There are fence trailers of a low-middle load capacity whereas there are those that can take very many animals at ago.

You can choose among these different types based on your need. such as Enclosed type bulk cargo trailer, Fence Type drop-side trailers, Van Type side wall semi trailer.

How to maintain the fence trailer in summer?

As the weather gradually rises, the "high temperature sickness" that belongs to the truck will follow. In order to avoid the sudden "high temperature sickness" of the truck during work, we need to carry out a series of safety inspections on the truck's cooling system

Because of the failure of the cooling system, the vehicle cannot work normally, ranging from delaying transportation time and increasing transportation costs, and more importantly, because it cannot effectively handle forced transportation, it will cause damage to the device and bring more maintenance expenses, which is not worth the loss.

Therefore, the vehicle cooling system should be checked regularly to avoid the above troubles.

TITAN livestock truck trailer

1. Check whether there are cracks, aging or leakage lines in the cooling system pipes, joints and non-spacing parts, and whether the machine parts are damaged. If leakage points or mechanical parts are found damaged, replace related parts in time if necessary.

2. Check whether the liquid level of the radiator meets the requirements, and replenish the coolant if necessary. It should be noted here that try not to add fresh water, after adding water will reduce the cooling effect, long-term use will also cause internal corrosion, resulting in blocked circulation and even more leaks.

3. Make sure that the core on the front of the radiator is not clogged with dirt or covered with soil, clean it if necessary, and clean it. When driving cargo trailer for a long time, there will be a lot of wool, insects and dust on the front of the radiator. This is normal, but it should be cleaned in time to avoid long-term blockage and affecting heat dissipation.

4. Check whether the color of the coolant is normal or contains impurities. If the antifreeze becomes turbid or the color is dark brown, it needs to be replaced immediately; if there are more impurities, it means that there is corrosion inside the water tank, and it should be cleaned in time. Pay special attention to the use of antifreeze. Cooling with water will cause corrosion of the engine and water tank.

5. Check the condition of the radiator cover valve and seal. Check if there are any cracks, delamination, wire breakage, severe wear and other phenomena in the water pump transmission belt. If work safety cannot be guaranteed, it should be replaced in time. At the same time, check whether the tightness of the water pump drive belt meets the requirements, and adjust it if necessary.

6. Check whether the water temperature sensor works normally and whether it is consistent with the water temperature meter.

7. Check whether the thermal switch of the water tank fan and the fan motor are operating normally, and whether the circuit connection meets the requirements. If necessary, replace or adjust it.

4 axle poultry transport truck trailer

Coolant filling specifications:

1. Open the expansion water tank cover when the engine stops and the water tank temperature is around 40°C (to prevent liquid splashing and steam burns).

2. Fill the coolant to the MAX of the water tank.

3. Cover and tighten to a sealed state, start the engine, and run at medium speed to raise the temperature above 80°C to ensure that the thermostat can open the air in the exhaust system.

4. Shut down and check the cooling system and heating system for leaks.

5. If the water level of the water tank is below MAX, repeat the above process until the water level does not change.

General Cargo Trailer for sale

The cattle trailer is a very useful vehicle for livestock farmers and those involved in the livestock industry operations. Different types of animals can be loaded on these trailers and that is why there are different designs and structures customized to address each of these situations.

If you are dealing with many animals, ensure that that you get a multi-floor trailer for your livestock. This will enhance your efficiency by transporting many animals at ago.

Outlined here are some of the considerations you should make when buying a livestock trailer. The help of a professional during the time of purchase would also be useful especially if you have special considerations to make.

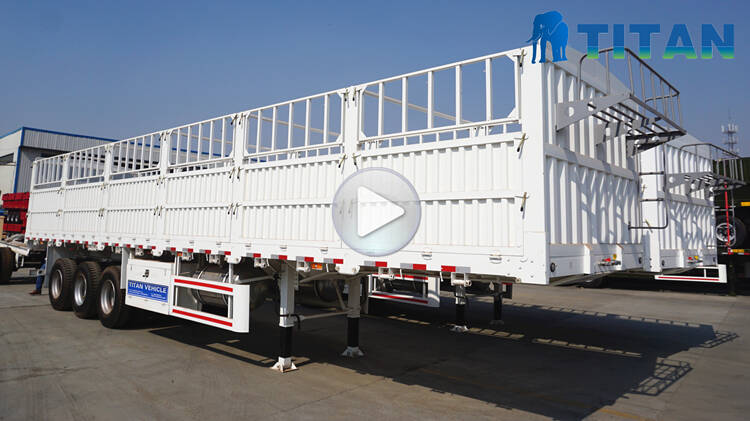

Through the video below, you can learn about different types of fence semi trailers(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer)

And the process, testing, packaging and customer feedback, etc.
