Sidewall cargo trailers is a kind of trailer whose design is suitably made to carry bulk cargo and containers. TITAN bulk cargo trailer can be customized according to the different requirements of customers in different countries.
Here is the cargo trailer that will be sent to Tanzania. This is our second cooperation. The first time the customer bought 2 units flatbed trailer, the customer told us immediately after receiving the flatbed trailer that the packaging was complete and there was no damage. We are also very happy to receive feedback from customers and we are very appreciative of our quality.
This time, the customer ordered sidewall trailers and a high bed trailer.

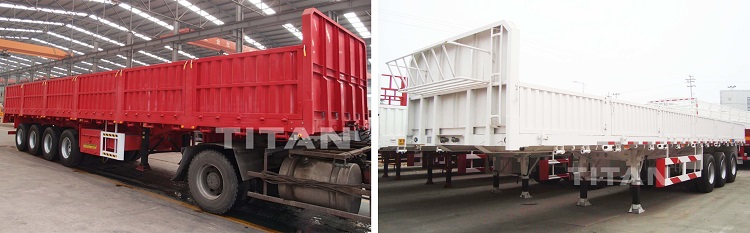

40ft tri axle trailers with dropsides
Bulk cargo trailers have become an important part of transportation, but many cargo trailer owners pay attention to tractors and ignore trailers when using vehicles. In fact, for the operation of trucks, trailers are as important as tractors. So how should the sidewall trailer be operated correctly and safely, and what matters should be paid attention to when using the cargo trailer? After reading this article, I believe you will have a closer understanding of the use of sidewall cargo trailer.
1. For the safety of vehicles and persons when loading and unloading and transporting goods, it is strictly forbidden to load unbalanced goods in the carriage during loading and unloading or transportation;
2. After the side curtain trailer with a center wall is loaded, the side curtain tensioner and the hook at the lower end of the curtain should be tensioned. For side curtain cars without a central wall, the sliding columns should be fixed according to the requirements of use, and then the side fences should be fixed;
3. If the van has an in-traielr cargo device, the cargo should be fully tied up with the in-car cargo device;
4. When loading and unloading, you must use a forklift according to the requirements of each vehicle, and loading and unloading beyond the limit is strictly prohibited;
Sidewall Cargo Trailer for Tanzania
1. Getting started
(1) Operate the outriggers correctly, make the feet of the outriggers leave the ground and rise to the limit position, ensure that the height of the feet of the outriggers from the ground is not less than 320mm (when the semi-trailer is fully loaded), and then hang the handle on the hook;
(2) Check whether the tire pressure is the specified value;
(3) Check whether the air pressure of the air brake system is within the specified range, and only start when the air pressure of the air cylinder reaches 550kPa;
(4) Release the parking hand brake;
2. Driving
After the above operations, you can drive. When going downhill, you must strictly observe the following operating points:
(1) To prevent the brake drum from overheating when going down a long or steep slope, try to use the tractor engine brake to brake;
(2) Don't use the dropside trailer braking system alone for a long time;

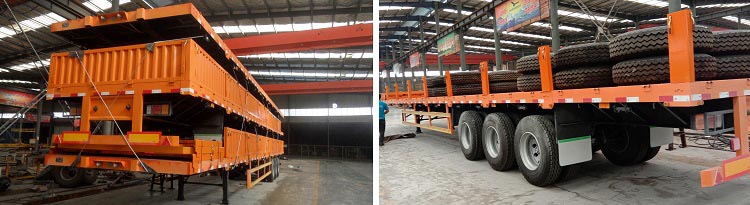

Flat deck with side board trailer

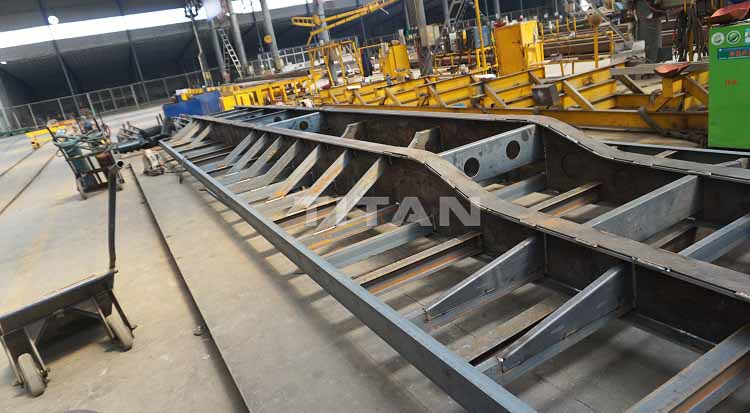

1.Main beam
The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a Side Panel Cargo Semi Trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm. The international standard thickness of the middle part of the beam must be 8mm.

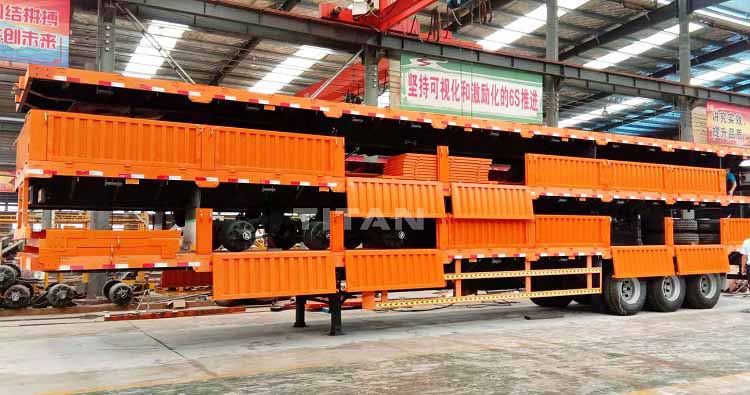

60 tons side wall flatbed semi trailer

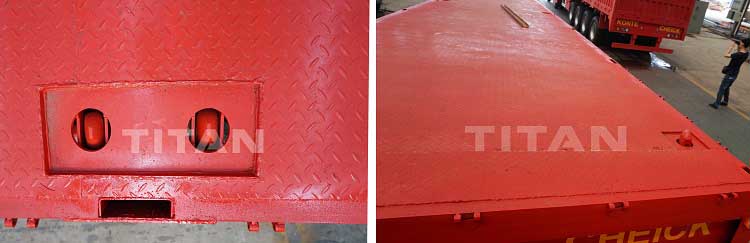

2. Bottom Floor
Many Platform semi trailer are also used to transport bulk cargo and other items. The bottom plate of the Drop Side Body Trailers passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate.
Goods transport side panel semi trailer

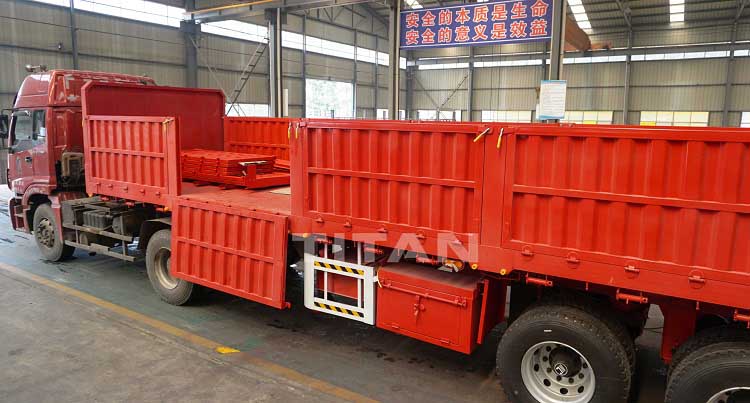

3. Side door
The common height of side door is 600mm, 800mm, 1000mm. The side door adopts a vertical corrugated structure. The door frame is a 40x60mm rectangular steel tube.
side wall flatbed semi trailer
4. Suspensions
You can choose from different types of suspensions for your cargo transport trailer. like air suspension, spring suspension, bogie suspension.
TITAN spring suspension width is 120mm, the thickness is 10mm, and rotation pin of suspension we use 70mm. Ensure it has high loading capacity and increases its capacity to twisting forces, shock, bump.
Through the video below, you can learn about different types of sidewall semi trailers(like 3 axle sidewall trailers, 4 axle high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 alxe side wall semi trailer with bogie suspension, dropside drawbar trailer)
And the process, testing, packaging and customer feedback, etc.
