When loading mechanical equipment on a low bed trailer, the mechanical equipment is usually loaded from the rear of the semi trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi-trailer on.
Low bed traielrs are also very extensive, suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials.
Low bed trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, paving machines, cranes, etc.) ) And other heavy-loaded goods, the lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high goods and pass overhead obstacles.

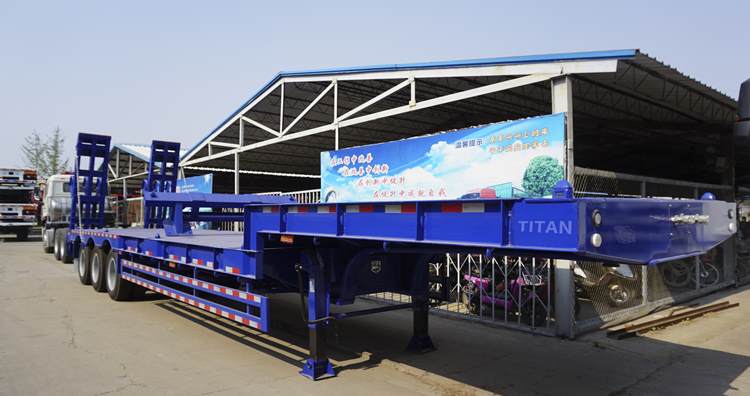

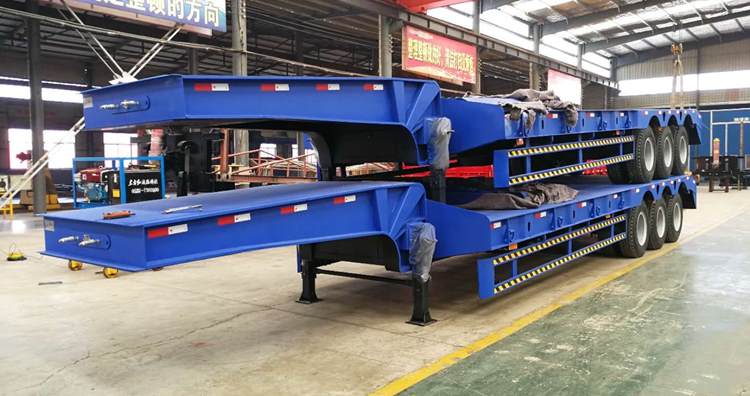

The low bed trailer usually adopts a concave beam (or well-shaped) frame, that is, the front part of the frame is a gooseneck (the traction pin of the front part of the gooseneck is connected with the traction saddle on the tractor, and the back end of the gooseneck is connected to the semi-trailer frame Connected), the middle section is the cargo platform (the lowest part of the frame), and the rear end is the wheel frame (including wheels).
Low Bed Trailer Ultimate Guide/Advantages-80 Ton Low Bed Trailer for Sale in Jamaica
1. The series of low bed trailers have flat, concave beam and tire exposed structures, and the longitudinal beams are of straight or gooseneck. The frame is stepped, and the cross section of the longitudinal beam is I-shaped, which has the characteristics of high rigidity and high strength.
2. The main plane of the frame and cargo platform is low, which ensures the stability of transportation, and is suitable for carrying all kinds of construction machinery, large equipment and steel. Three-axis balanced

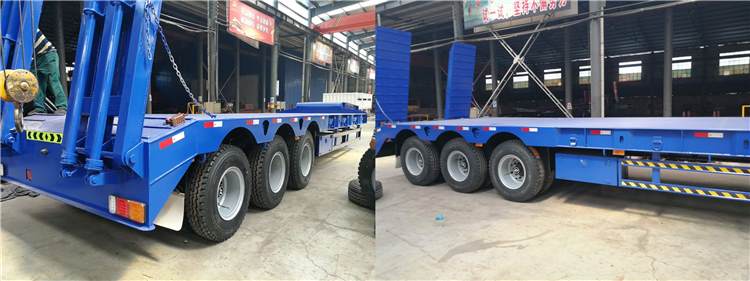

3. It adopts three-axis balanced, two-axis balanced or rigid suspension, with mass balance blocks installed between the front and rear leaf springs, which can change the deflection of the front and rear leaf springs by the same amount and balance the forces on the front and rear axles;
4. The low bed trailer series products are suitable for the transportation of a variety of mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials. They are versatile, efficient and fast. The whole vehicle adopts advanced computer-aided design software, which is optimized for flexible and diverse design. The load-bearing surface of the frame is designed according to user requirements to meet the transportation of various special goods.
Low bed trailers are widely used in different fields due to their advantages over other heavy transport vehicles. The main advantages are summarized below.
1-Stability
Compared with other heavy trucks, Low Boy’s deck is excellent. A lower deck means a lower center of gravity. Therefore, low-bed trainers are more stable than trailers when transporting heavy objects.
One way to increase stability is to expand the support base. For low bed trailers, this is possible because the width of the cargo plane can be widened. Regardless of the height and weight of the cargo, the trailer remains stable on the road.
2-Safety
The low bed trailer is specially designed to bear weight. The trailer is made of high-strength materials and can withstand pressures up to 700mpa.
In addition, the height of the main beam can be as high as 550mm. Therefore, the safety of the manufacturer's equipment and products during transportation can be ensured. The following is a picture of the heavy beam used to make the low bed trailer
3-Meet height restrictions
Some countries/regions have laws restricting the height of goods that can be transported on the road.
Low bed trailers provide companies with a solution to safely transport ultra-high equipment without breaking the law.
Loading tall equipment on trailers is often a huge challenge for transportation companies.
Certain types of low bed trailers allow the user to lower the rear, which makes loading heavy objects easier and safer.
The next section outlines more detailed information about the different types of low bed trailers, including detachable trailers.

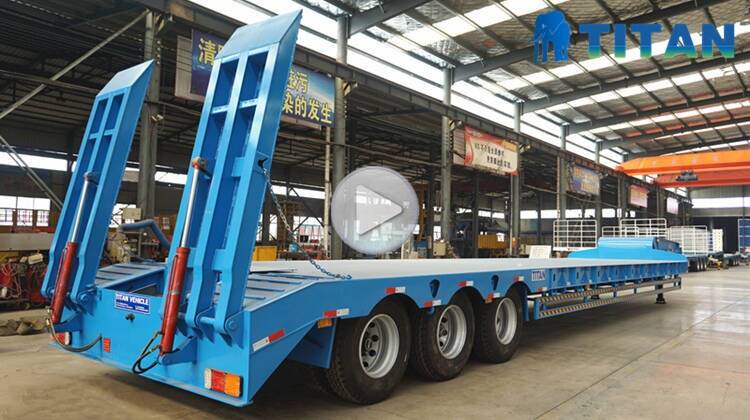

Through the video below, you can learn about different types of low bed semi trailers (like low bed trailer , low bed semi trailer , low bed trailer for sale , low bed truck , low loader truck)
And the process, testing, packaging and customer feedback, etc.
