Fuel tanker trailers are mainly used to transport liquids and petroleum. The tank body is usually made of carbon steel plate, but also can be made of aluminum alloy, stainless steel, polyethylene and other materials. The oil tank trailer is different from other special vehicles. Because of its relatively high risk factor, it is often used to transport flammable liquids, so the safety configuration is stricter.
1. The Carbon Steel Diesel Tank Trailer must be equipped with ABS, and the front axle must be a disc brake. In terms of safety, the use of ABS can prevent the tire from locking when the vehicle is braking, and the front axle loading disc brake can effectively ensure the braking ability, which is more sensitive than the drum brake. Driving safety is greatly improved.
2. The exhaust pipe of the dangerous goods transport vehicle must be front-mounted. The engine exhaust pipe of the dangerous goods transport vehicle and the blasting equipment transport vehicle must be front-mounted, and an exhaust spark extinguisher must be installed at the end of the exhaust pipe to cool the exhaust gas of the vehicle to avoid extinguishing the sparks entrained in the exhaust gas.
3. The speed of dangerous goods transport vehicles must be limited. Because the driving speed of the dangerous goods transport vehicle is too high, the risk factor is greatly increased. The speed of the dangerous goods transport vehicle is generally controlled within 80 km/h.
4. Fuel tanker trailers must be equipped with emergency cut-off devices. The emergency cut-off device is a safety device installed at the oil interface of the tank truck. When the pipeline ruptures or other causes of medium leakage, the medium flow rate in the pipe increases, and the valve will immediately close itself to perform emergency leakage stop to prevent a large amount of medium leakage To avoid or reduce accidents.
5. Aluminum Alloy Oil Tanker trailer must be equipped with eye-catching warning signs. Safety notices, danger indicator lights, etc. must be painted on the tanks of dangerous goods transport vehicles for identification by other personnel.
6. Petrol tanker for sale must be equipped with electrostatic belts. The static conductive rubber tow belt is installed on the bottom of the vehicle. It can introduce static electricity to the ground, keep the tank at zero potential, and prevent the generation of static sparks.
7. Diesel Tank Trailer must also be equipped with driving recorders, ionization pyrotechnic detectors, static conductive rubber plates, etc.
Compared with carbon steel tank trailer, aluminum alloys have the advantages of no collision sparks, no pollution to the oil medium, and light weight. However, aluminum alloy materials are lower than carbon steel products in strength, hardness, and plasticity, so once stress occurs Concentration will cause cracking. In order to ensure even stress distribution of aluminum alloy products and avoid stress concentration, it is necessary to prefer linear design and overall frame structure. In response to the characteristics and design requirements of aluminum alloy materials, we have introduced aluminum alloy tank trucks that not only meet regulatory requirements but also ensure safety and efficiency.
Advantages of TITAN Diesel Tank Trailer
1. Emphasis on safety device: The can lid is an explosion-proof large cover. After the tank collides and rolls, the can lid will not open. The bottom outlet of the tank is equipped with an emergency shut-off valve --- subsea valve.
2. TITAN fuel tanker trailer tank body adopts longitudinal welding technology to reduce the number of tank welds and improve the overall solidity of the tank body by more than 20%.
3. Quality inspection: test water test, air pressure test. Water injection experiment: ensure the tank is highly sealed to avoid oil leakage, Air pressure detection: to ensure that oil and gas will not volatilize under high temperature, to ensure that the vehicle is safe to drive and park.
4. The tank body is made of a professional canning machine and can be molded at one time. The maximum pair guarantees the degree of the solidity of the tank body. If the collision occurs inadvertently, the tank will not crack.
5. The Anti-wave board reduces the impact of liquid on the tank. The inside of the tank is equipped with a thickened anti-wave board to reduce the direct impact of liquid on the tank.
6. Complete safety device, high safety. The oil tanker trailer uses explosion-proof manholes to avoid the leakage of the medium in the tank, and it can also release the gas in the tank in an emergency or fire when the tank truck has an accident or fire, effectively preventing the explosion accidents. The chemical Monoblock tanker trailer is equipped with a large-displacement safety valve to effectively prevent safety accidents.

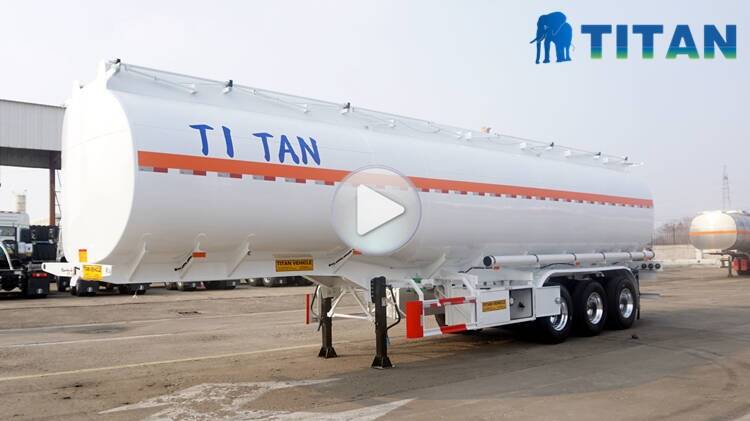

Through the video below, you can learn about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer)
And the process, testing, packaging and customer feedback, etc.
