This article will introduce you some choosing guidance and knowledge of fuel tanker semi trailer, welcome to send messages and inquiries to us!
1.What is fuel tanker trailer?
A fuel truck, or tanker truck or tanker, is a motor vehicle designed to carry liquids or gases on roads. The largest such vehicles are similar to railroad tank cars which are also designed to carry liquid loads. Many variants exist due to the wide variety of liquids that can be transported. Tank trucks tend to be large; they may be insulated or non-insulated; pressurized or non-pressurized; and designed for single or multiple loads (often by means of internal divisions in their tank). Some are semi-trailer trucks. They are difficult to drive due to their high center of gravity.

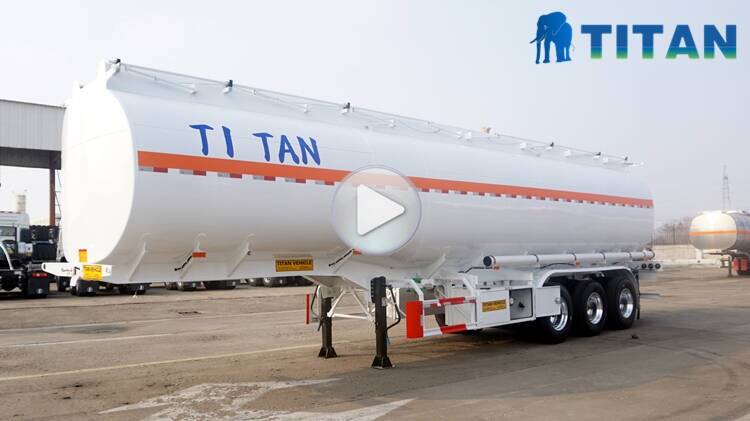

3 Axle 40cbm Fuel Tanker Trailer
Choosing a product that you are satisfied.
(1) To meet your own requirement.
When you choose shomething that you need, the first step is to ask yourself "what do you really need"; buy a suitable and affordable car. What's more, the most important is that choose the tanker according to your own needs. There are various kinds of fuel tanker trailers to meet your requirement, you should consider its loading capacity and length transporation etc. The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 litres, 45,000 litres, 54,000 litres, up to 90,000 litres. With the different compartments, like two, three, four, or more compartments, to load different liquid. The liquid tanker semi trailer used for carrying different liquid like fuel, petrol, water, palm oil, bitumen asphalt etc.
(2) The materials of the fuel tanker trailer
We make the fuel tanker trailers, heavy bitumen tanker semi trailer, or chemical sulfuric acid tanker semi trailers. For the Hydrochloric Acid Tanker, TITAN produce the most strong acid tank body to make sure the safety. We adopt 5mm thick steel to weld the tankers, also use special design, like the 10 pcs strengthened steel ring to reinforce the Dilute Sulfuric Acid tanker trailer. To keep the Nitric Acid tanker safety, we use the stainless steel emergency bottom valve also the discharge valves, this type is anti-corrosion, so it can make the chemical tanker trailers to have long service life.

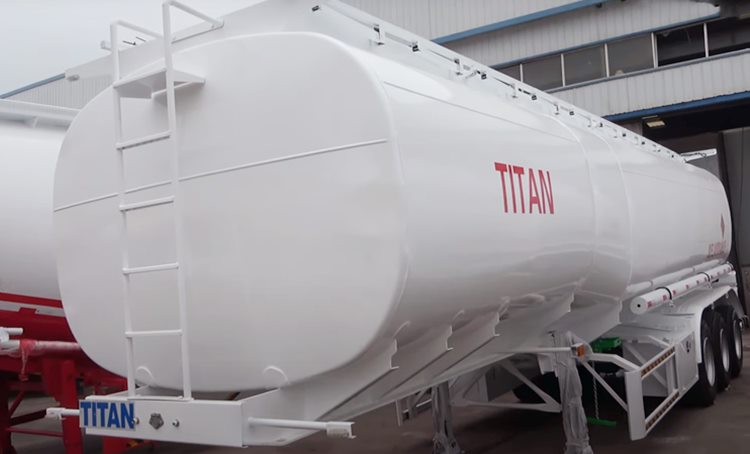

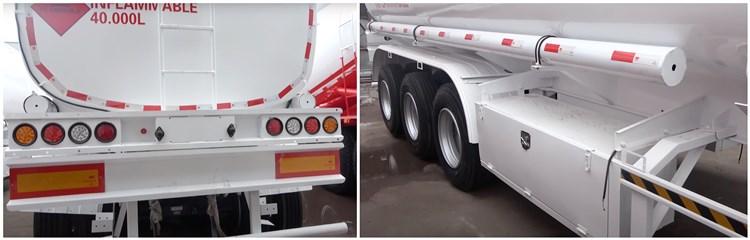

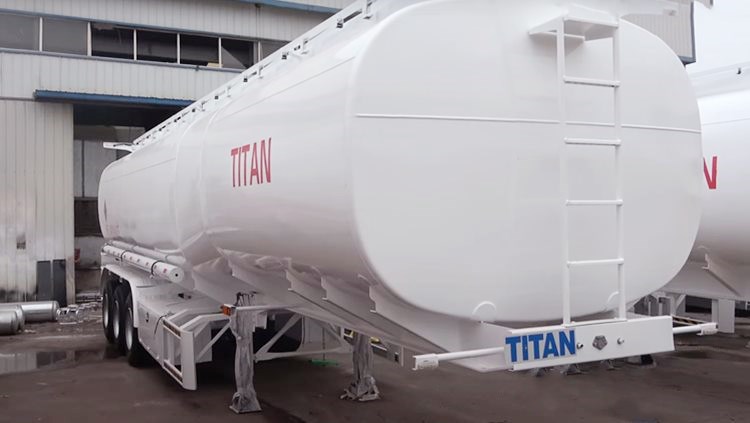

Details of the Fuel Tanker Trailer
(3) The function of the fuel tanker trailer
It can be divided into different compartments. Our water tank trailer can be divided into 1-7 compartments, which can be filled with different petroleum products and chemicals. This design can realize the drawing-in and drawing-out of the instrument, instead of drawing-out the instrument. The tank body is made of carbon steel, stainless steel tank trailer and aluminum steel. The shape of the pot is square, oval and round. The oil pump uses a self-priming pump and a gear pump. The fuel meter uses single-count, double-count, tax-controlled fuel dispensers. Optional water tank, European standard tank, subsea valve, etc.
(4) The price of the fuel tanker trailer
The price of a tanker truck consists of chassis price, modified price and optional equipment. Different chassis, different engines, different countries' exhaust emissions, different fuel tank volumes and different uncertain factors constitute the price of refueling vehicles. Therefore, when choosing a refueling vehicle, it is best for users to communicate with the company’s sales staff and share their fuel. Inform the sales staff of the fuel dispenser requirements, and the sales staff will recommend cheap fuel dispensers suitable for users according to users' requirements.
Besides the above tips, there are also some advantages of the fuel tanker trailer:
1. With safety devices: the manhole is an explosion-proof large cover. After the tank collides and rolls, the manhole never open. The bottom outlet of the tank is equipped with an emergency shut-off valve --- bottom valve, which is synchronized with the current Chinese standard.
2. The tank body is automatically welded by an advanced large-scale special welding machine. To ensure the quality of the weld, the tank will not open, and improve the service life of the tanker
3. The tank body uses a professional tank rolling machine. One side in shape by two sides technology ensures that the welding without defects, oil leakage does not occur, and the safety factor of the tanker trailer is improved
4. Longitudinal welding technology. The TITAN tanker body is longitudinally welded and has only four longitudinal welds in the tank, reducing the risk of welding. If the collision occurs inadvertently, the tank will not crack. Ensure the safety of the tanker and increase the service life.
5. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid oil leaks. Flawdetector Inspection: After the production of the tanker is completed, it is necessary to test the Flawdetector room to detect whether the tank is defective (impurities, etc.) to prevent potential safety hazards.
6. The waved board reduces the impact of the liquid on the tanker. The inside of the tank is equipped with a thickened waved board to reduce the direct impact of the liquid on the tanker body.
7. Advanced paint system and polyurethane paint. TITAN tanker trailer uses the best polyurethane paint spraying, polyurethane paint has strong adhesion, corrosion-resistant. Appearance is beautiful, service life is longer.
Through the video below, you can learn more about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer)
And the process, testing, packaging and customer feedback, etc.
