Lowboy Trailers: Our detachable gooseneck trailers are often referred to as “lowboy trailers”. These models are offered with capacities ranging from 35 to 55 tons. Well lengths are available ranging from 20’ to 33.5’ lengths on the tandem models and from 20’ to 26’ lengths on the tri axle models. Spring ride suspension is offered on 35 and 50 ton models. Ridewell brand air ride suspensions are offered on 35, 50, and 55 ton models. For states that are difficult to get your axle weights legal, flip axles are available in both tandem and tri axle models.
Characteristics of Detachable Gooseneck Lowboy Trailer
Our detachable gooseneck agricultural trailers impressed the industry with their versatility and competitive price. We don't think that dragging wide agricultural equipment will bankrupt farmers. We have fine-tuned the design and invested in our own aluminum profiles to get the perfect aluminum slide-out legs. This durable component combines strength and light weight. You will not be disappointed! The result was an extension of 27 inches on each side and a convenient stop at 24 inches, 18 inches and 12 inches to tow equipment that may not be too wide but requires a larger capacity on each leg. There is a flat deck for transporting equipment at the rear. Available deck heights are 18 inches, 20 inches and 24 inches, and the well length can be up to 33.5 inches, and you can choose to add a turning axis. It will be difficult for you to find a trailer that will not be hauled. device of.
The gooseneck on TITAN detachable gooseneck is hydraulically driven, with automatic lifting and automatic alignment functions. It can always be easily slid into the V-shaped alignment groove included in all our low-profile trailers. Our hydraulically controlled fork does not need to manually block the neck during disassembly. Tailor-made heavy-duty hydraulic cylinders are made in the United States, combining power and convenience. Our increased cylinder stroke means you can raise the trailer chassis from the ground to 16"-20", depending on the fifth wheel height. The easy-to-adjust heavy-duty articulated compression block assembly provides approximately 4 inches of stroke height adjustment according to the length of the gooseneck. We offer a variety of gooseneck lengths in 6 inch increments. We can help you find the ideal length of neck for your truck.
Our detachable gooseneck trailer includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs, independent amber strobe kit, 11 pairs of D-rings, 2 inch nominal air-drying white oak floor, 3rd air lift axis (only 3-axis air slide device) and manual slide height multiplier (only air slide device)
1. Strong carrying capacity
Most of this type of Gooseneck Lowboy Trailer has large tonnage, so the body is mostly designed with an arched cargo bed, and the longitudinal beams are mostly multi-longitudinal high-strength steel structures, which reduces the weight and improves the carrying capacity.
Lowboy trailer's main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability.
Due to the low ground clearance and low longitudinal beam height of this kind of Gooseneck Lowboy Trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable lowboy semi-trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
Oilfield trailers bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
3. Good performance
The cargo bed load-bearing surface of the lowboy trailer can be adjusted to the ground height by a hydraulic device as needed, and when it passes through culverts or bumpy roads, the cargo bed load-bearing surface can be lowered or raised to improve its passing performance.
4. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
5. Easy maintenance
Because the bearing surface can be raised and lowered, the tires on a bridge can be grounded, and other tires can be safely and conveniently replaced or other maintenance work without detaching.

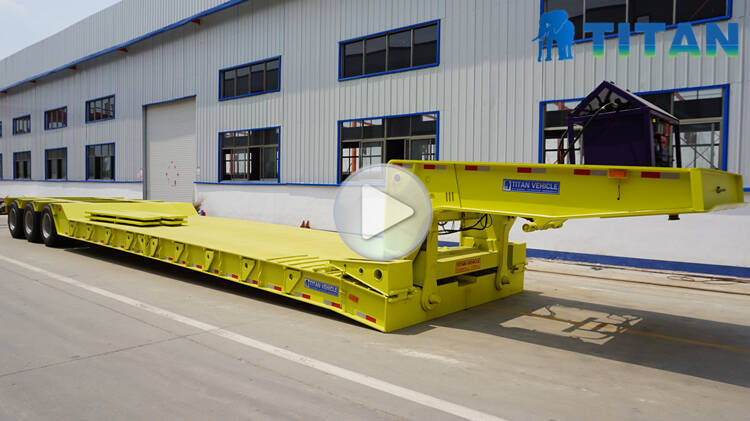

Through the video below, you can learn about different types of gooseneck semi trailers (likelowboy trailer , detachable gooseneck trailer , rgn lowboy trailer , removable gooseneck trailer , gooseneck trailer)
And the process, testing, packaging and customer feedback, etc.
