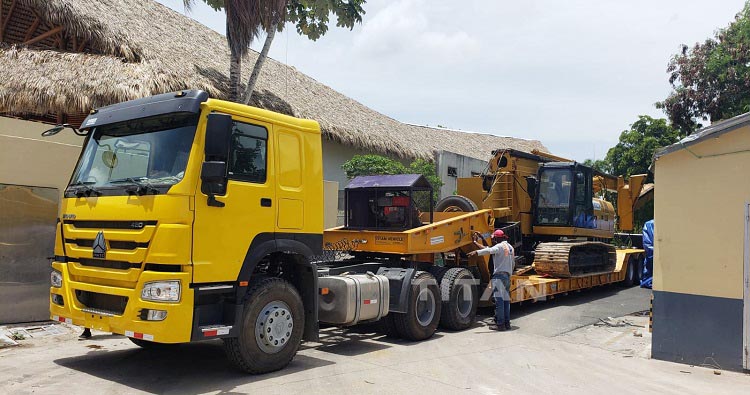

In July, we paid a return visit to customers in Dominica. TITAN will pay a return visit to every customer who purchases a semi-trailer to understand whether it is in normal use and whether there are problems, so as to solve it in time and extend its service life. This is also the exclusive advantage of TITAN, not only must have pre-sale, sale and after-sales service. The customer was very happy to share with us the usage of the gooseneck lowboy trailer he bought. The customer told us that it was used very smoothly and there was no problem with the heavy lowboy trailer. The following is a picture of a customer transporting an excavator.

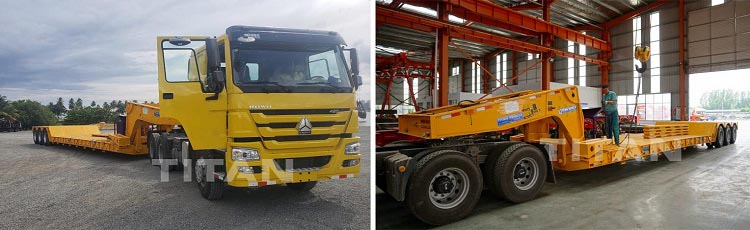

In June last year, the customer customized gooseneck lowboy trailer, the Dominican customer received TITAN detachable gooseneck Lowboy semi-trailer. The customer said that when he received the lowboy trailer, he felt that the whole was very strong, even stronger than he thought. This is the picture used by the customer. When the gooseneck lowboy trailer is received, it will be attached with TITAN special rain cloth to prevent seawater erosion. The customer is very satisfied.

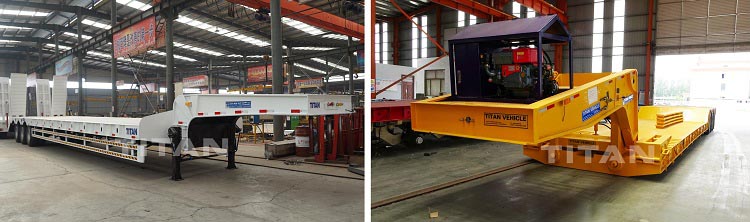

The lowboy detachable gooseneck trailer is particularly adapted to carry and transport large mobile equipment. It is able to do so due to its low-level trailer bed or frame and its gooseneck feature. Most important to note is that the trailer bed has backwardly placed moving wheels.
Here are the most important parts that enhance your operations with a lowboy trailer.

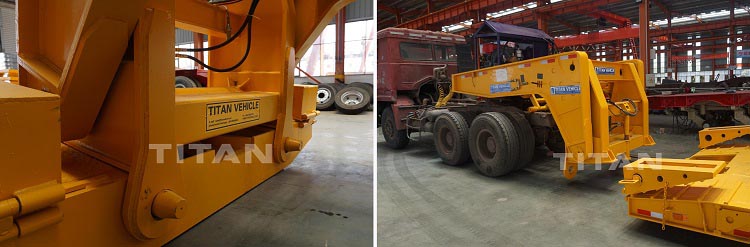

First, there are two interlocking pairs of the main coupling hooks. Lowering and raising the trailer assembly is made possible through the use of the synchronized hydraulic ram. These operate in between the trailer bed and the gooseneck at a point towards the back of the coupling hooks point.
Additionally, there is a retractable safety pin that is used to maintain the interconnection between the trailer bed and the hydraulic ram attachment of the gooseneck. The ram features offer a positive lock of thrust power load bearing blocks perfectly in a load bearing state when in normal operation. The control attachments for the trailer assembly components are well placed on one part of the assembly to enhance safe operating procedures.
1. Strong carrying capacity

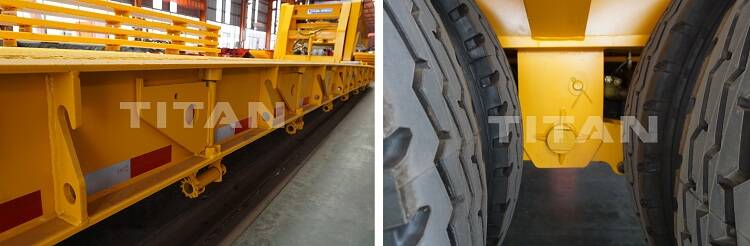

Most of this type of lowboy trailers have large tonnage, so the body is mostly designed with an arched cargo bed, and the longitudinal beams are mostly multi-longitudinal high-strength steel structures, which reduces the weight and improves the carrying capacity.
2. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
3. Easy maintenance
Because the bearing surface can be raised and lowered, the tires on a bridge can be grounded, and other tires can be safely and conveniently replaced or other maintenance work without detaching.
4. Easy operation
The lifting operation handle of the bearing surface mostly adopts the centralized electric control device, rather than the traditional handle to control the operation, so that the operation interface is more convenient.
TITAN hydraulic system has undergone five major system upgrades in the ten-year production process, and now the hydraulic system has very good stability and stability The customer only needs regular maintenance. It can be used for ten years.
The main difference between loading removable gooseneck lowboy trailer and common lowbed trailers is that, the removable gooseneck trailers load the equipment or cargo from the front.
Ideally, the removable gooseneck trailers are complex to operate, but the equipment/cargo is easily driven on the trailer. The equipment is more safety and stable during loading, transit and offloading operations.
Unlike a detachable gooseneck lowboy trailer, a common lowbed trailer is loaded from the rear section. Essentially, the equipment should be driven on the trailer through ramp of low bed trailer. This provides a simple operation but the equipment or whatever cargo carried on it needs to be careful to drive on the trailer.
Important Considerations
1. Should the lowboy trailer assembly approach a low overhead obstruction such as a bridge, your operator should lower the assembly moderately by simply releasing the trailers’ hydraulic rams. On the other hand, when approaching a raised road obstruction like an exposed railroad track, the compression blocks and safety hooks can be let loose and then extend the hydraulic rams to a desired position for a slow speed over a short distance in these scenarios.
2. When there is a need to detach the gooseneck from the tractor to keep the gooseneck still attached to the trailer frame. Engage the safety hook with pins to hold the gooseneck in position and prevent it from falling in a forward direction.

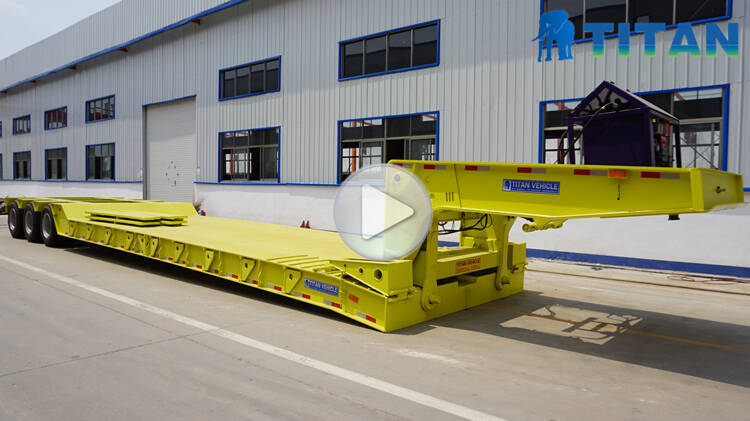

Through the video below, you can learn about different types of lowboy semi-trailers(like 3 axle detachable gooseneck lowboy trailers, 4 axle lowboy trailer, 3 line 6 axle heavy duty lowboy trailer, folding gooseneck trailer)
And the process, testing, packaging and customer feedback, etc.
