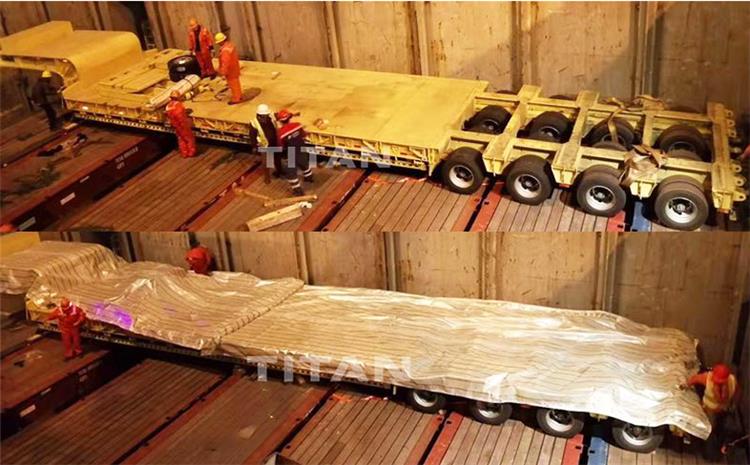

TITAN 4 lines 8 axle low loader trailer is ready to be delivered to Tanzania. Our trailers will be tested before the completion of the product, Ensure that the carrying capacity of the trailer's cargo platform meets customer needs.

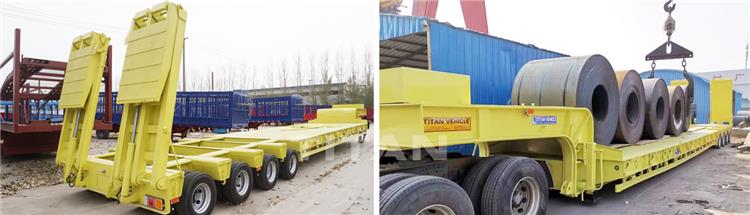

4 Lines 8 Axles Low Loader Trailer for Sale
Our customer saw our lowboy trailer from a local friend. He was very satisfied with our car as a whole. Through the nameplate on the body, he found our company website and sent us an inquiry. We have provided customers with a large number of product videos and detailed explanations. In addition, our customers have actually seen our lowboy trailers. In just one week, our customers have customized a low loader trailer. Our Tanzanian customers not only like TITAN's services, but more importantly, TITAN's product quality and technology. TITAN's production process and technology cannot be achieved by every factory.
Package of lowbed trailer
1. The main beam adopts HG high strength steel, with high loading capacity, and Main beam adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity.
2. The main beam height is 550-580mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.
3. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.

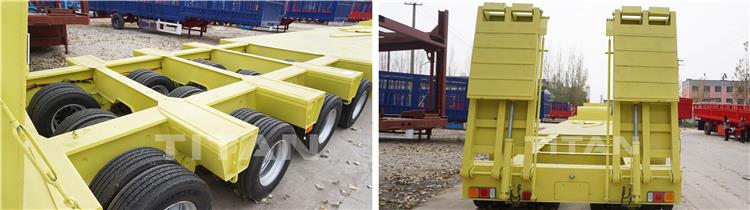

4. The suspension width is 120mm, the thickness is 10mm, and the rotation pin of suspension we use 70mm. Ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.
5. World famous brand spare part, ensure high quality and save costs.
3 lines 6 axle lowboy trailer VS 4 lines 8 axle lowbed trailer
1. In the relevant reports of bulk transportation or when buying low loader trailers, 3 lines 6 axles and 4 lines 8 axle semi-trailers are often heard. One wheel axle is equipped with 4 tires, and one axis has 8 tires. Therefore, the width of the whole low loader can reach more than 3 meters. In order to reduce the center of gravity of the whole low loader trailer, a steel radial wide tire rim with a small diameter and a large load capacity is generally installed, and each tire can withstand a load of about 4 tons under low-speed operating conditions. The frame adopts a welded structure of high-strength alloy steel box section. Usually a 5-axle, two-axle single low loader trailer can load more than 100 tons, this configuration is more popular with foreign customers.
2. There may be multiple wheels and suspensions on one line. Since most flatbed trailers can be spliced horizontally, the number of trailer axles can be adjusted according to the quality or size of the goods.
The number of suspension rows along the transverse direction of the trailer is called the number of longitudinal rows of the trailer, in other words, the number of suspensions (axles) on the axis of a trailer.
The number of columns of a hydraulic low bed trailer that can carry cargo alone should be at least two. By horizontal splicing, trailers with 3 columns, 4 columns, or more columns can be formed.

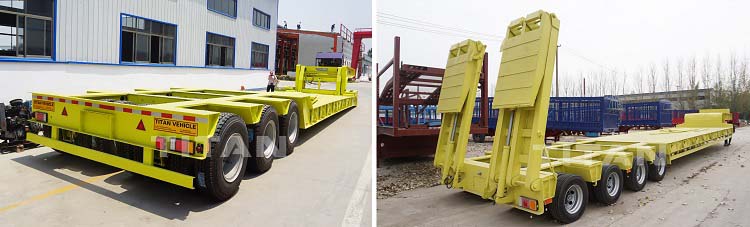

100 tons low bed trailer manufacturers

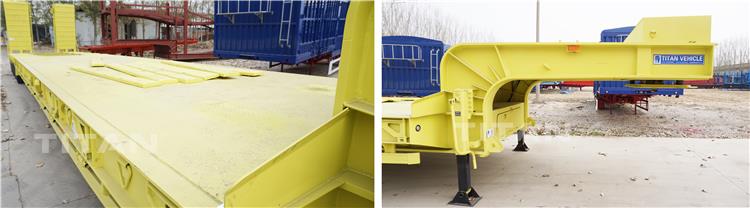

Generally, the low bed semi-trailer adopts a concave beam type frame, and some other types of frames are also used. The front part of the frame is a gooseneck (note: the traction pin at the front end of the gooseneck is connected with the traction saddle on the traction, and the rear end of the gooseneck is connected with the semi-trailer). Generally, the middle section is the cargo platform (that is, the lowest part of the frame we mentioned earlier), and the rear section is the wheel frame (including wheels).
Low loader trailer s are usually used to carry heavy things, such as tractors, buses, special vehicles, etc., as well as rail vehicles, mining machines, forestry machines, and agricultural machines (excavators, loaders, Paving machines, cranes, etc.).
excavator trailer for Tanzania
Compared with the container flatbed trailer, its center of gravity is lower, and its stability and safety are better. Therefore, it has a stronger ability to transport high cargo and pass overhead obstacles. When loading mechanical equipment on a low loader trailer, we usually load the mechanical equipment from the rear of the semi-trailer, that is, generally use the method of moving the mechanical equipment from the rear wheel frame or removing the wheels, and then fix the mechanical equipment On a semi-trailer.
Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.
