Sidewall trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers. Many customers use container shipment, which has low transportation cost and short transportation time. TITAN bulk cargo trailer can be customized according to the different requirements of customers in different countries.

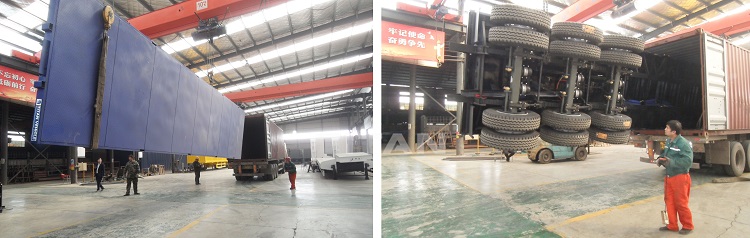

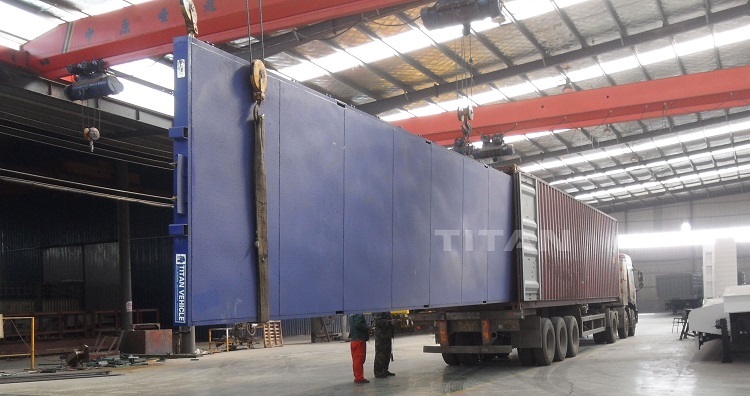

Package of 3 Axle Semi Sidewall Trailer
Customers saw the TITAN side wall semi trailer in local. And asked our local customers Usage. We later learned that the local customer was a customer who bought 20 sidewall semi trailers a year ago. Then the customer found us. Finally bought 2 axle side wall semi trailer.

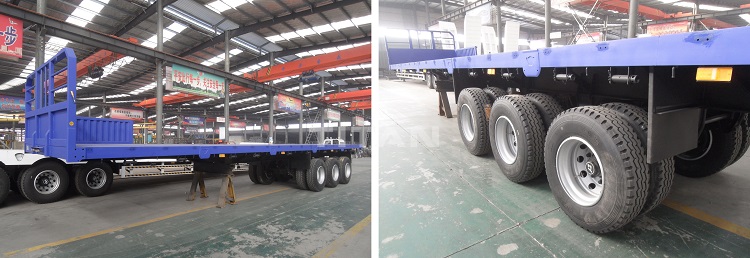

3 Axle Dropside Trailer for Mozambique
Dropside trailer developed on the basis of a container flatbed trailer, the drop side trailer has a sidewall structure design and wide range of uses. It is mainly suitable for medium and long-distance transportation of medium and heavy and bulk cargo. It has become the first choice for medium and long distance freight trailers. The cargo semi-trailer can be added with a container turn lock to transport the container.
Details of Semi Sidewall trailer
1. TITAN High Side Trailer side beam 160mm,100mm channel steel transverse, all the beams are supported, cross beam spacing not more than 500 inclined brace, the vehicle is not easy to deformation. Cross beams and side beams are reinforced.
TITAN side wall trailer the backplate is 3mm patterned plate, the backplate is strong and durable, and not easy to be deformed. Which is thicker than 2.5mm or 2mm in other factories.
2. TITAN sidewall semi trailer uses low carbon high strength alloy steel Q345 to make the girder,which has higher bearing force and service life of more than 10 years.
3. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate, it can ensure the intergrated main beam, so the main beam is more stronger and more durable.
4. TITAN sidewall semi trailer is equipped with JOST legs, LED light which is a world-recognized famous brand accessories. Better bearing capacity, long service life.
5. Sidewall trailer use polyurethane paint with high adhesion, high chromaticity and beautiful color. The cost is twice that of ordinary acid paint.

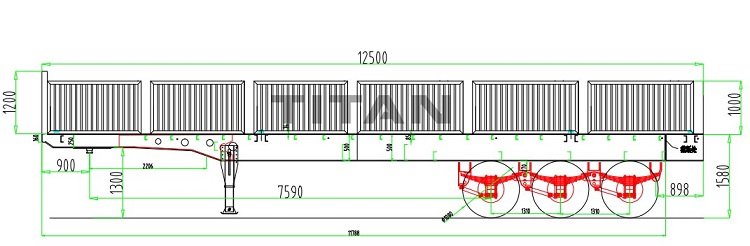

3 Axle Semi Sidewall Trailer drawing
1. For the safety of sidewall trailer and persons when loading and unloading and transporting goods, it is strictly forbidden to load unbalanced goods in the carriage during loading and unloading or transportation;
2. After the side curtain trailer with a center wall is loaded, the side curtain tensioner and the hook at the lower end of the curtain should be tensioned. For side curtain cars without a central wall, the sliding columns should be fixed according to the requirements of use, and then the side fences should be fixed;
3. If the van has an in-traielr cargo device, the cargo should be fully tied up with the in dropside trailer cargo device;
4. When loading and unloading, you must use a forklift according to the requirements of each vehicle, and loading and unloading beyond the limit is strictly prohibited;

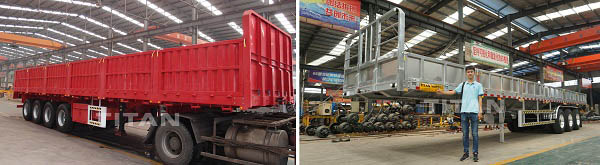

Different types of side wall semi trailer

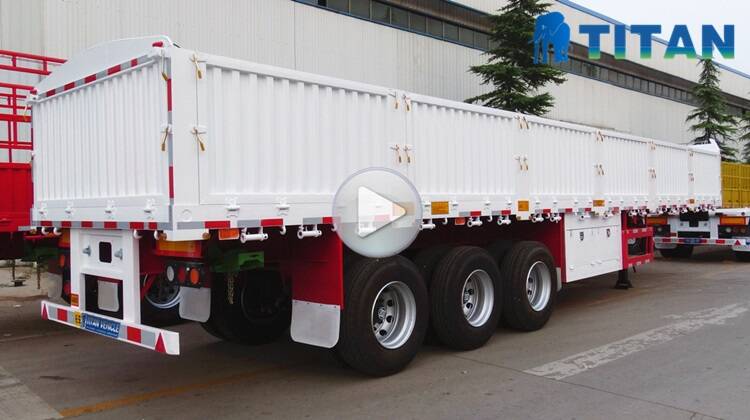

Through the video below, you can learn about different types of sidewall semi trailers(like 3 axle sidewall trailers, 4 axle high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 alxe side wall semi trailer with bogie suspension, dropside drawbar trailer)
And the process, testing, packaging and customer feedback, etc.
