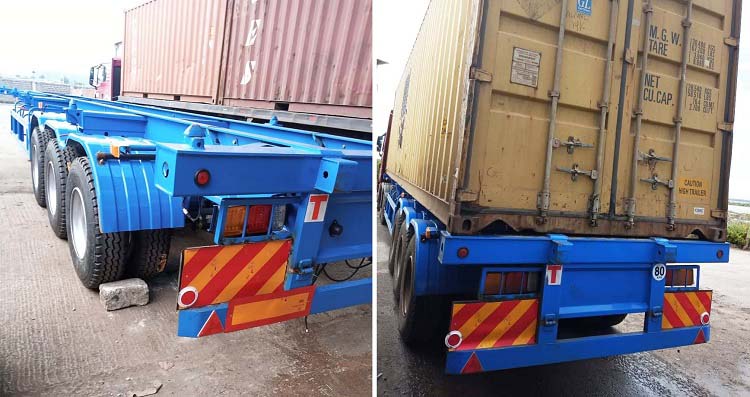

On July 23, TITAN 40 foot 3 axle container chassis trailer arrived at the port and was made for the Kenya Transportation Company. The skeletal trailer has excellent visual effects, driving and loading performance. Kenyan customer was very satisfied after the vehicle inspection. He recognized the TITAN container chassis trailer and sent a thank you email to share the pictures and videos of the goods he received.

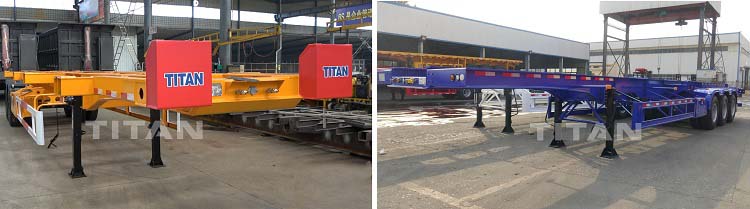

The container chassis trailer is TITAN hot sale semi-trailer, sold to many countries, such as Nigeria, Zimbabwe, Madagascar, Sri Lanka, Papua New Guinea, etc. The upgraded semi-trailer intelligent new production line adopts new technology and new equipment, and the product quality has jumped to a new level. This cooperation, from the meticulous and rigorous technical scheme to the quality control of the production process, all links reflect the dedication of TITAN, A perfect working attitude, and finally deliver products that satisfy customers on time, laying a solid foundation for TITAN to further enter the overseas market.
A skeleton trailer is a transportation method that loads a variety of goods, various shapes, and sizes into standard-sized containers before transportation to facilitate water, land and air combined transportation. It can realize loading and unloading, transportation mechanization, and standardization. It is a transportation method. An important part of transport modernization.
1. Advanced equipment

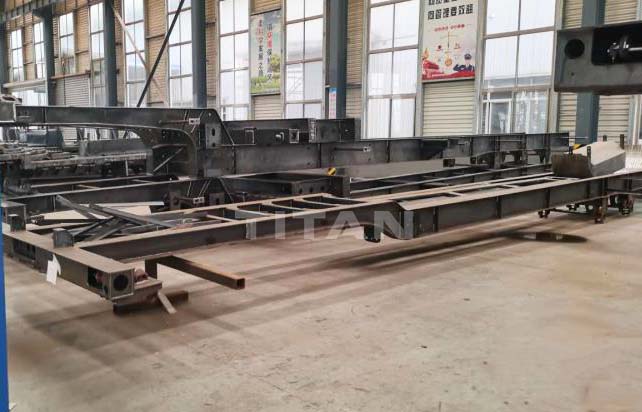

(1) Welding: TITAN has an advanced e-welding production line with uniform welding seams, good forming and high strength. TITAN container trailer uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate，it can ensure the intergrated main beam, so the main beam is more stronger and more durable.
(2) Laser cutting machine: cutting parts, with high cutting precision and small error rate.
(3) Spray paint: polyurethane paint, the skeletal trailer is more beautiful, has strong adhesion, long-term use of non-fading, non-fading paint, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle
2. Detail design
Main beam
Advantages: The use of integral main beams makes the skeleton semi trailer more robust and durable, while making the whole container trailer more beautiful and unified.
Compared with the channel steel support produced by other manufacturers, the reinforced inclined support is more durable and has a more consistent appearance.
Reinforced suspension
Advantages: play a role of consolidation and strengthening, specially designed irregular shape, heavier load-bearing.

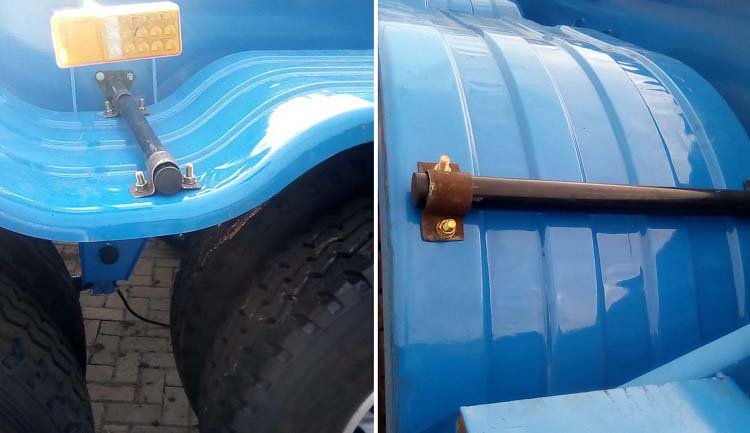

Integrated steel mud guard
Advantages: beautiful appearance and more practical.

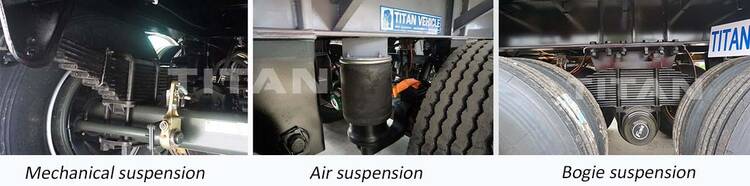

In order to improve driving safety, reduce weight, facilitate loading and unloading, and at the same time meet customer requirements, the container chassis trailer suspension system has gradually used air suspension. Then, what are the advantages of air suspension?
The basic technology of air suspension mainly includes two parts: an air spring with compressed air inside and a shock absorber with variable damping. Compared with traditional steel suspension systems, air suspension has many advantages. The most important point is the elastic coefficient of the spring, that is, the softness and hardness of the spring can be automatically adjusted as needed. For example, the suspension can be hardened during high-speed driving to improve the stability of the 40ft skeleton trailer body. When driving at a low speed for a long time, the control unit will think that it is passing a bumpy road and use the suspension to soften to improve shock absorption comfort.
1. Light weight: The biggest advantage of air suspension is light weight, which is much lighter than traditional leaf spring suspension.
2. Convenient loading and unloading: Through the manual height valve in the air suspension system, the height of the vehicle loading platform can be adjusted within a certain range to facilitate loading and unloading.
3. Stable driving and good shock absorption performance: Compared with lightweight vehicles, shipping container trailer with air suspension drive more smoothly.
4. High safety: The uniform distribution of the axle load on each axle and the balanced contact between the tire and the ground can improve the overall braking performance and turning stability of the axle. At the same time, the height of the air spring can be automatically adjusted according to the road conditions to reduce vibration and help protect cargo safety.
5. Reduce maintenance costs: When the vehicle is running with no load, the air suspension can lift the axle, reduce tire wear, extend the service life, and reduce fuel consumption.

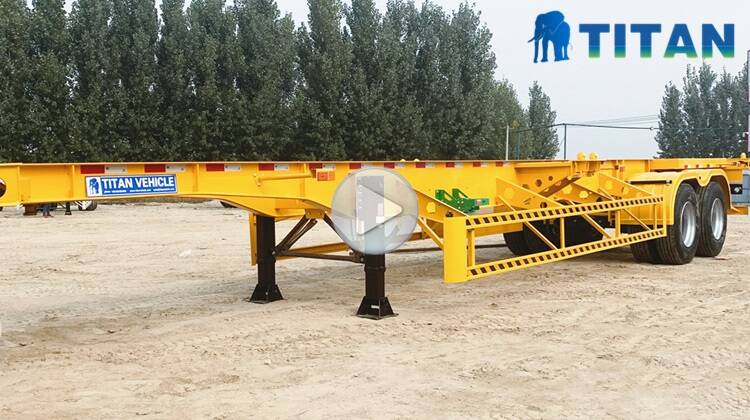

Through these videos, you can learn about different types of container chassis trailers, like 2/3/4 axle skeleton chassis for sale, 20/40ft skeleton container, interlink container trailer, terminal trailer, and the process, testing, packaging and customer feedback, etc.
