On July 25, We have received feedback from a Rwandan customer. The fuel tanker drawbar trailer he bought has already been used. The customer is very satisfied with our products and introduced his friend to us. The customer kept our fuel tanker drawbar trailer white when they bought it, and the customer told us that they wanted to design the same style with their own fuel tanker truck.

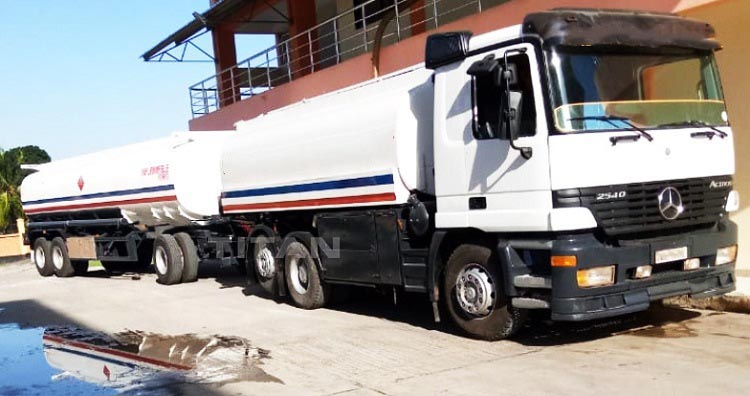

Here is the picture shared by our Rwanda customers:

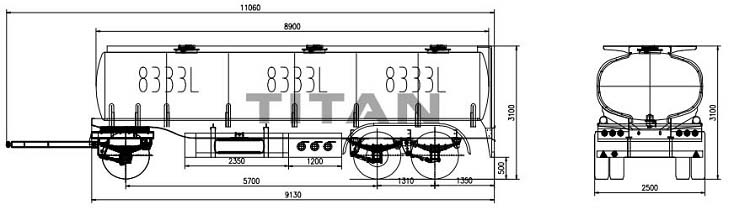

Fuel tanker trailers, also known as oil trucks, diesel tanker trailers, etc., are mainly used for the transportation and storage of petroleum derivatives. This Rwanda customer requires the fuel tanker drawbar trailer with 25 cubic meters, 3 compartments, For a large fuel tanker trailer, there may be more than one transportation medium. At this time, it is necessary to separate the tank body to transport multiple media at the same time.
Generally, a fuel tanker trailer with a tank volume of 11 cubic meters or more is most suitable for multiple compartments. There are two reasons. One is that if the tank volume is small, multiple warehouses will increase the price of tank trucks. The second is that if the volume of the tank is small, a partition must be installed in the tank, which will occupy a certain proportion of the space and reduce the tonnage of the oil. Take gasoline and diesel transportation as an example, the tank body of the oil truck is divided. The two bins are loaded with gasoline and diesel respectively.

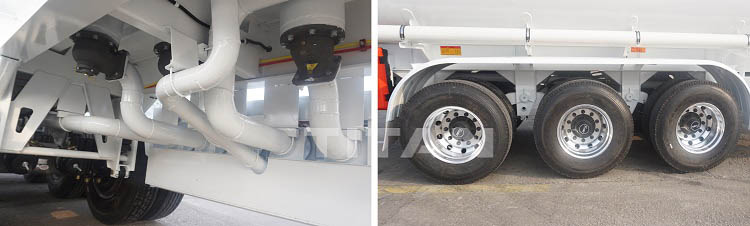

After the oil tanks are divided into compartments, the oil loading/unloading pipeline arrangement is to install a pipe separately for each tank, and each compartment needs a manhole cover, so when loading and unloading oil, you only need to open each compartments valve.

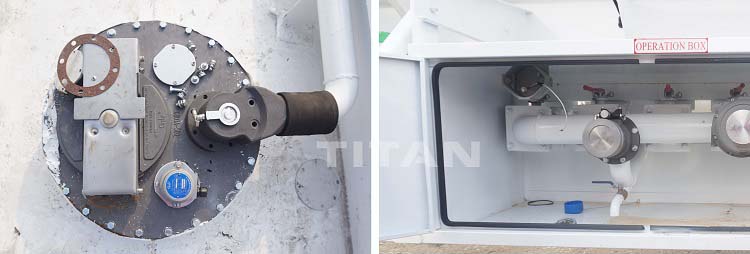

1. Tank cover: TITAN fuel tanker trailer use the European standard explosion-proof manhole cover. Including breathing valve, oil and gas recovery valve and anti overflow valve. The outlet at the bottom of the tank is equipped with an emergency shut-off valve - undersea valve, When the tank body collides and rolls over, the tank cover will not be opened.
2. TITAN uses Q345 low carbon alloy steel to make the fuel tanker trailer, which is 5mm thick and very solid. TITAN tank body uses the most advanced welding technology.
3. Quality test: water test, air pressure test. Ensure that the oil and gas will not volatilize under high temperature, and ensure the safety of the vehicle during driving and parking.
4. Anti wave plate is set in the tank to reduce the impact of liquid on the tank. The tank body is equipped with thickened anti wave plate to reduce the direct impact of liquid on the tank body.
5. The tank car adopts advanced sandblasting paint surface treatment technology and polyurethane paint. After welding, the whole vehicle sandblasted many times, effectively increasing the adhesion of paint. The best polyurethane paint is applied to the tank car for three times. The polyurethane paint has strong adhesion and corrosion resistance.
Install ABS
The front axle must be a disc brake. In terms of safety, the use of ABS can prevent the tire from locking up when the vehicle is braking. The disc brake on the front axle can effectively ensure the braking ability. Compared with the drum The brake must be more sensitive and driving safety will be greatly improved.
Emergency cut-off device
The tank truck is equipped with an emergency cut-off device. The emergency cut-off device is a safety device installed at the oil interface of the oil tanker trailer. When the pipeline ruptures or the medium leaks due to other reasons, the flow rate of the medium in the pipe increases, and the valve will immediately close by itself. Emergency stop leakage to prevent a large amount of medium leakage and avoid or reduce accidents.
Equipped with electrostatic belt
Tank trucks must be equipped with static belts. The static conductive rubber tow belt is installed on the bottom of the diesel tanker trailer. It can lead static electricity into the ground to keep the tank at zero potential and prevent static sparks.
Air suspension
When the carrying weight exceeds a certain value, the semi-trailer for transportation of dangerous goods shall be equipped with an air suspension. This is because the most dangerous thing in the transportation of dangerous goods is the friction and bumps of dangerous chemicals during transportation. Equipped with an air suspension can make the bumps of the dangerous goods and reduce the friction coefficient, making it safer.
Eye-catching warning signs
Oil tank trucks have eye-catching warning signs. The tank bodies of oil tank trucks must be painted with safety notices, hazard lights, etc. so that other personnel can identify them.

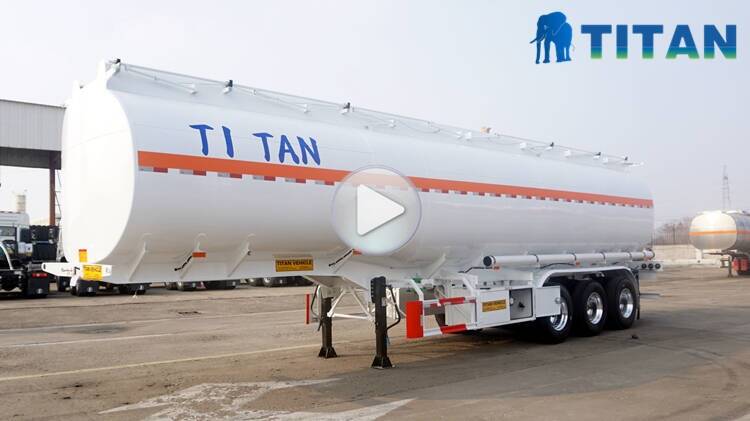

Through the video below, you can learn about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer)
And the process, testing, packaging and customer feedback, etc.
